A Mitsubishi VFD (Variable Frequency Drive) is an electronic device manufactured by Mitsubishi Electric that controls the speed and torque of an AC motor by adjusting the frequency and voltage of the electrical power supplied to it. VFDs are also known as inverters or AC drives. They are used to optimize motor performance, reduce energy consumption, and improve system efficiency in various industrial applications.

For any service and support contact us.

Here’s a more detailed explanation:


  • A VFD is a type of motor controller that regulates the speed of an AC motor by adjusting the frequency and voltage of the electrical power supplied to it.

  • VFDs are also known as inverters or AC drives.

  • They are used to control the speed and torque of electric motors, allowing for precise adjustments to meet specific application needs.

How does it work?
  1. 1. Rectification:

    The VFD first converts the incoming AC power to DC power using a rectifier.


  2. 2. DC Bus:

    The DC power is then stabilized in a DC bus.


  3. 3. Inversion:

    Finally, the VFD inverts the DC power back into AC power with a variable frequency, which is then supplied to the motor.


  4. 4. Frequency Adjustment:

    By varying the output frequency, the VFD controls the motor’s speed and torque.

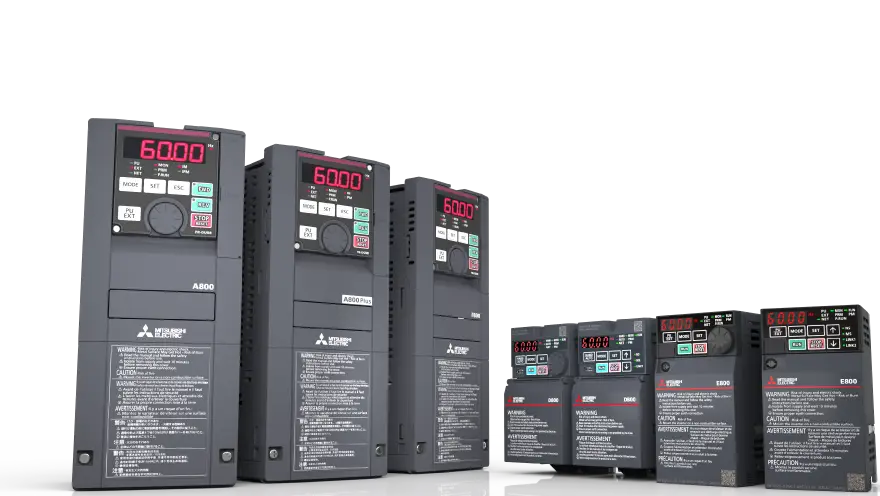

Mitsubishi VFDs (e.g., D700, A800, F800):
  • Mitsubishi VFDs are known for their energy-saving capabilities and advanced functionality for modern automation.

  • They are designed to optimize motor control, reduce energy consumption, and improve system performance.

  • Mitsubishi Electric offers a range of VFD series, including the D700, A800, and F800, each designed for specific industrial applications.

Benefits of using Mitsubishi VFDs:
  • Energy Savings:

    VFDs can significantly reduce energy consumption by adjusting motor speed based on load demand.


  • Improved Motor Performance:

    They enable precise speed and torque control, leading to smoother operations and increased efficiency.


  • Extended Equipment Lifespan:

    Soft starts and controlled stops reduce stress on motor components, extending their lifespan.


  • Reduced Maintenance:

    VFDs protect motors from overloads, undervoltage, and short circuits, minimizing the need for maintenance and repairs.


  • Compliance with Regulations:
    Mitsubishi VFDs can help meet energy efficiency regulations.
