SHIHLIN VFD

SHIHLIN VFD

A Shihlin VFD, or Variable Frequency Drive, is a type of motor control device manufactured by Shihlin Electric. It is used to control the speed and torque of electric motors, specifically AC motors, by adjusting the frequency and voltage of the electrical power supplied to them. Shihlin offers a range of VFDs, including the SA3, SE3, SF3, SS2, SC3, and SL3 series, each with different features and capabilities.

For any service and support contact us.

Here’s a more detailed explanation:


  • A VFD is an electronic device that regulates the speed of an electric motor by controlling the frequency and voltage of the power supplied to it.
  • Traditional electric motors run at a fixed speed based on the frequency of the power source. VFDs allow for adjustable speeds, which can lead to energy savings and improved process control.
  • VFDs are also known as Variable Speed Drives (VSDs), but VSDs can encompass a broader category of drives that control both AC and DC motors.

Shihlin VFDs:
  • Shihlin Electric is a manufacturer of various VFD models for different applications.

  • Some of the Shihlin VFD series include:
    • SA3: 0.75KW ~ 355KW

    • SE3: 0.4KW ~ 22KW

    • SF3: 5.5KW ~ 355KW

    • SS2: 0.4KW~5.5KW

    • SC3: 0.2KW~5.5KW

    • SL3: 0.4KW~2.2KW

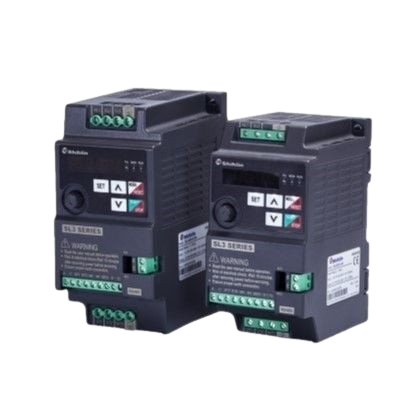

  • Shihlin SL3 series is known for its simple design and small size.

  • Shihlin also offers specialized models for specific applications.

How VFDs Work:
  1. Rectification: The VFD first converts the incoming AC power to DC power.

  2. DC Link: This DC power is then smoothed and stored in a DC link.

  3. Inversion: Finally, the VFD uses an inverter circuit to convert the DC power back into AC power, but with a variable frequency.

  4. Control: The VFD controls the frequency of the AC power, which directly affects the speed of the motor.

Benefits of using Shihlin VFDs:

  • Energy Savings:

    By adjusting motor speed to match the load, VFDs can significantly reduce energy consumption.


  • Improved Process Control:

    VFDs allow for precise control of motor speed, enabling better process optimization and performance.


  • Reduced Mechanical Stress:

    Variable speed operation can minimize mechanical stress on the motor and connected equipment.


  • Extended Motor Life:

    By reducing stress and operating at optimized speeds, VFDs can extend the lifespan of motors.


  • Flexibility:
    Shihlin VFDs are available in a wide range of sizes and models to suit various applications.
